We’re proud to announce the release of a standalone, simple to use program for datalogging, flashing and code reading for Motronic 4.4. This program runs on both Windows and MacOS. There is no longer any need for complicated computer setup using the program TunerPro.
You can find the latest version here.
Instructions
Flashing:
- Flashing tunes requires a license file (.vslc). This file was emailed to you with your first tune.
- Once you license file is loaded, you can flash a tune by clicking ‘Load Tune + Flash ECU’. You’ll be prompted to load the tune file. Once the tune file is loaded, flashing will start automatically.
- For those with an x70 that is stubborn to flash, click the ‘Repeat Erase’ flash check box and follow the prompts on the screen.

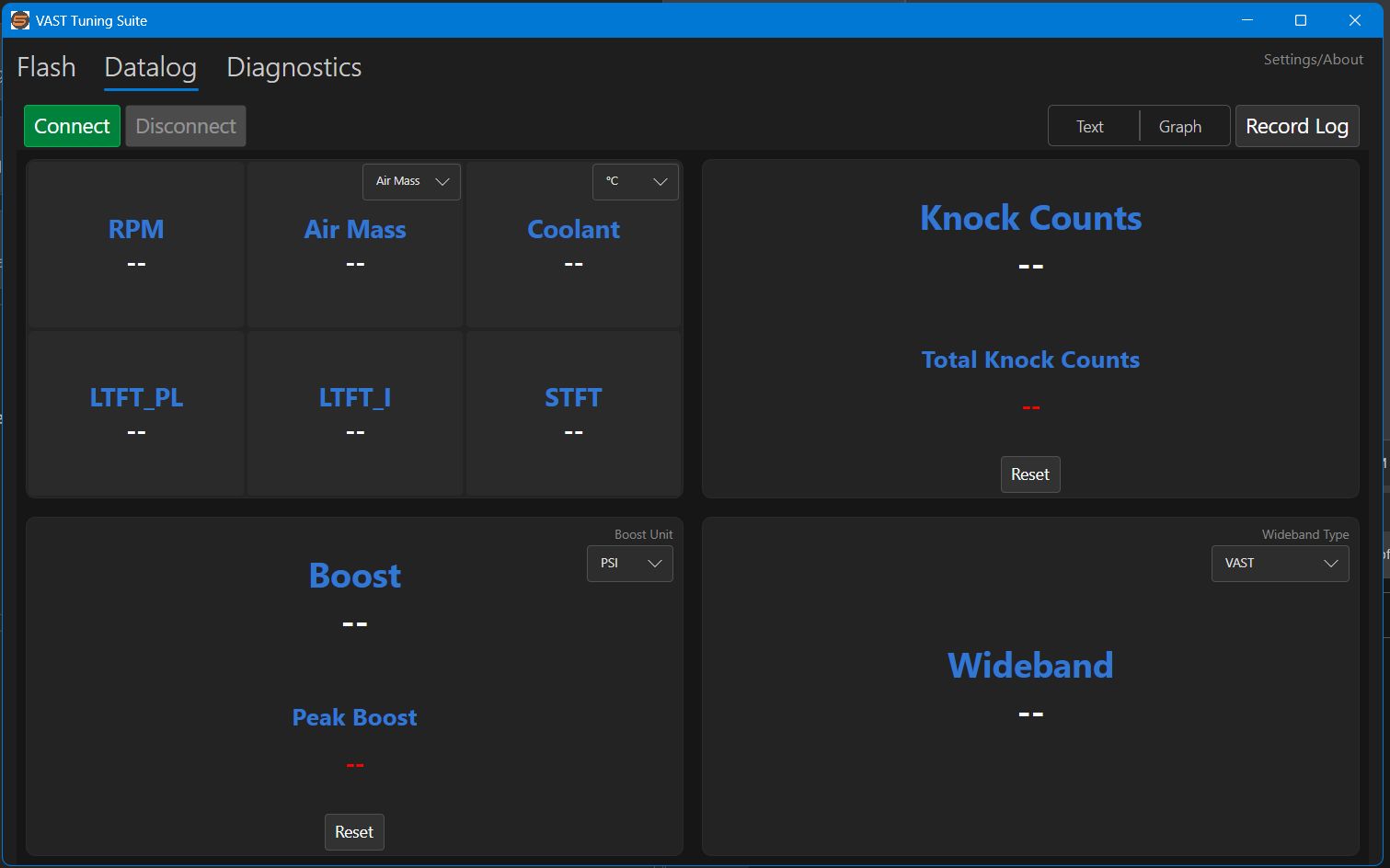

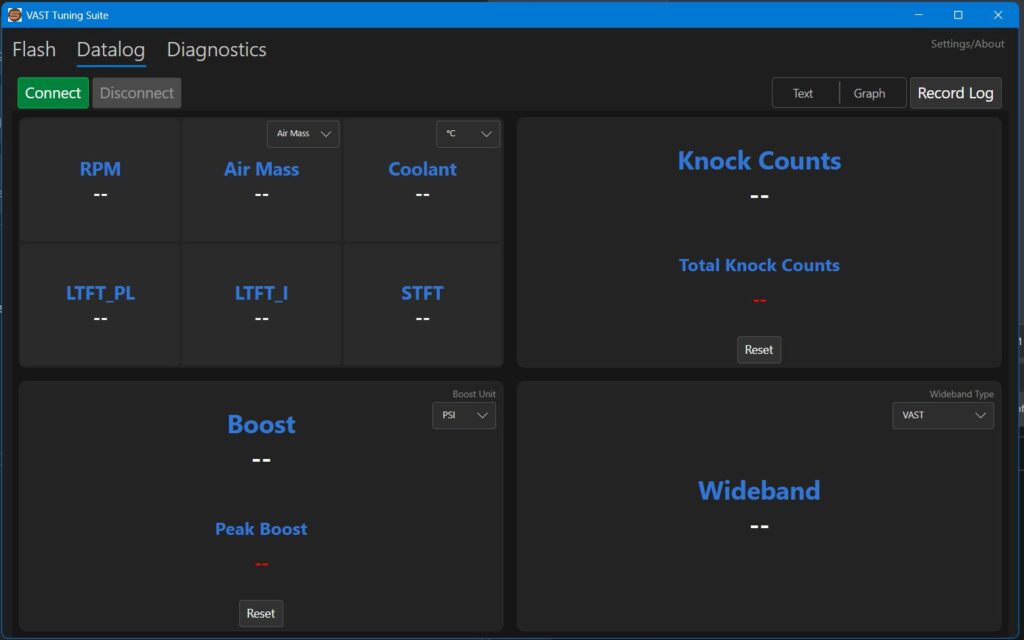

Logging:
- Log files will be automatically named based on the last tune that was flashed to the ECU.
- Logging does not require a license file.
- The recorded log file will be saved as a .xdl file, which is compatible with TunerPro. There is an option to also save the log as a .csv. You can enable this by clicking the ‘Settings/About’ button.
- Both a text and graphical view of the data is available.
- In the text view, the coolant temperature reading will flash red when excessively high. Also, knock counts will flash when 3 or more knock events are detected within 3 seconds.
- In the graphical view, the last 45 seconds of data are shown. Clicking on the graph will show the values at that point and pause the incoming data.
Diagnostic Code Reading:
- Code reading is separate from flashing and logging. To switch from logging to code reading, or vice versa, the ignition must be cycled off and back on.
- Codes are not stored or saved to a file.
